HCW Wing Gate Turnstile with 40W DC Brushless Motor RS485/RS232 Interface and RS485/RS232 Interface Flap Barrier Turnstile
| Menşe yeri | Çin |
|---|---|
| Marka adı | HCW |
| Sertifika | CE/ISO 9001 |
| Model numarası | CW507 |
| Min sipariş miktarı | 2 adet |
| Fiyat | pazarlık edilebilir |
| Ambalaj bilgileri | tahta sandık |
| Teslim süresi | 5-8 iş günü |
| Ödeme koşulları | T/T |
| Yetenek temini | Günde 100 adet |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Brand name | HCW | Ürün modeli | CW507 |
|---|---|---|---|
| Muhafaza malzemesi | 304 paslanmaz çelik | Muhafaza boyutu | 1400*300*990mm |
| Garanti | 1 yıl | Sertifika | ISO 9001/CE |
| Çalışma Sıcaklığı | -25 ℃ ~ 70 ℃ | Motor | 40W DC fırçasız |
| İletişim arayüzü | RS485/RS232 | Kızılötesi kiriş | 4 çift |
| Normal servis ömrü | 5 milyon döngü | Geçiş hızı | 30 ~ 40 kişi/dakika |
| Vurgulamak | wing gate turnstile with DC brushless motor,wing gate turnstile with RS485 interface,flap barrier turnstile with RS232 interface |
||
Ürün Açıklaması

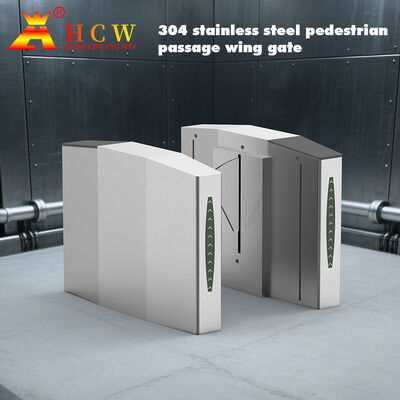

HCW Wing Gate Turnstile with 40W DC Brushless Motor
The HCW CW507 is a premium bidirectional flap barrier turnstile designed for high-traffic security applications. Featuring a rugged 304 stainless steel enclosure (1.2-1.5mm thickness), it ensures long-term durability in demanding environments. Powered by an efficient 40W DC motor system, it delivers smooth, maintenance-free operation while processing 30-40 people per minute - ideal for corporate offices, transport hubs, and secured facilities.
Key Features
- 304 stainless steel construction for maximum durability
- 40W DC motor for smooth, maintenance-free operation
- Processes 30-40 people per minute for high-traffic areas
- Supports RS485/RS232 interfaces for system integration
- 4-pair infrared beams for anti-tailgating protection
- Operates in extreme temperatures (-25℃ to 70℃)
- Compact 1400*300*990mm footprint
- 5 million cycle lifespan with 1-year warranty
- ISO 9001/CE certified
Specifications
| Brand Name | HCW |
|---|---|
| Product Model | CW507 |
| Enclosure Material | 304 stainless steel |

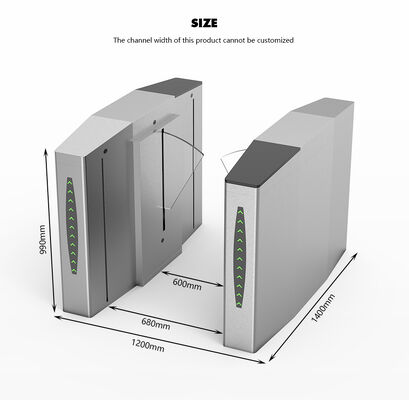

| Enclosure Size | 1400*300*990mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Operating Temperature | -25℃~70℃ |
| Motor | 40W DC brushless |
| Communication Interface | RS485/RS232 |
| Infrared Beam | 4 pairs |
| Normal Service Life | 5 million cycles |
| Passage Speed | 30~40 people/minute |
| Thickness | 1.2~1.5mm |
Advantages
Enhanced Safety & Durability
304 stainless steel construction (1.2~1.5mm thickness) ensures high impact resistance and long-term reliability in high-traffic areas.
Smooth & Efficient Operation
40W DC brushless motor delivers fast, silent, and maintenance-free performance with a passage speed of 40 persons/min.
Secure & Intelligent Access Control

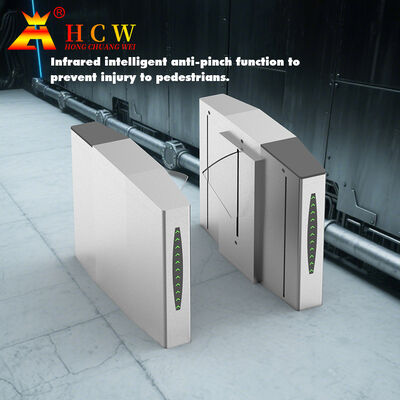

4 pairs of infrared beams for anti-tailgating detection, ensuring strict security compliance for offices, factories, and public facilities.
Weather & Dust Resistance
Dustproof and waterproof design capable of operating in extreme temperatures (-25°C to 70°C), ideal for both indoor and outdoor installations.
Certified & Cost-Effective
ISO 9001 and CE certified with 5-million-cycle lifespan and 1-year warranty, providing a high-quality yet budget-friendly solution.
Applications
- Office Buildings & Corporate Facilities: Ensures secure and efficient access control for employees and visitors with sleek stainless-steel design.
- Public Transport & High-Traffic Areas: Manages crowd flow in metro stations, airports, and stadiums with 40 persons/min processing capability.
- Factories & Restricted Zones: Provides strict access control for industrial sites with infrared sensors to prevent tailgating.
