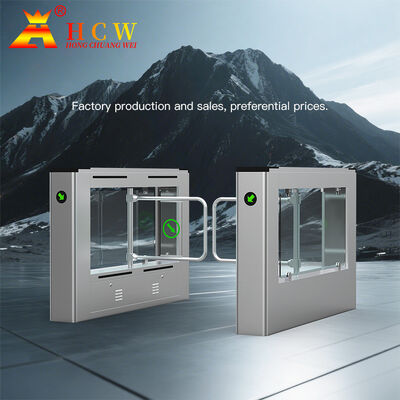

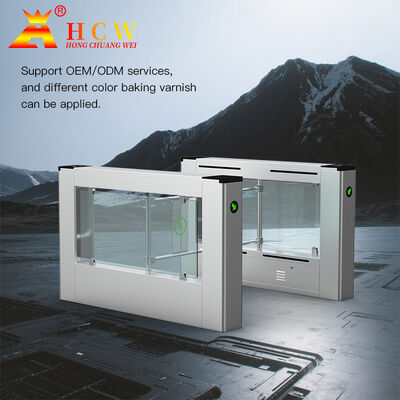

AC220V Power Supply Swing Barrier Turnstile with IP46 Protection and 30-40 People/Minute Capacity
| Menşe yeri | Shenzhen, Çin |
|---|---|
| Marka adı | Hongchuangwei |
| Sertifika | CE/ISO 9001 |
| Model numarası | CW421 |
| Min sipariş miktarı | 2 adet |
| Fiyat | pazarlık edilebilir |
| Ambalaj bilgileri | ahşap kasalar |
| Teslim süresi | 5-8 İŞ GÜNÜ |
| Ödeme koşulları | T/T |
| Yetenek temini | Günde 100 adet |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün modeli | CW421 | Güç kaynağı voltajı | AC220V |
|---|---|---|---|
| Çalışma ortamı sıcaklığı | -25 ℃ ~ 70 ℃ | BAĞIL NEM | % 97 |
| IP koruma seviyesi | 46 | Nominal güç | 25W |
| Sorunsuz çalışma süreleri | 2 milyon kez | Çalışma hızı (xx insanlar/dakika) | 30 ~ 40 kişi/dakika |
| Vurgulamak | AC220V Power Supply Swing Barrier Turnstile,IP46 Protection Swing Turnstile Gate,30-40 People/Minute Pedestrian Swing Gate |
||
Ürün Açıklaması
HCW Swing Barrier Turnstile with Brushless Motor & Infrared Anti-Pinch Safety
Pedestrian Swing Turnstile Barrier Gate with Face Recognition

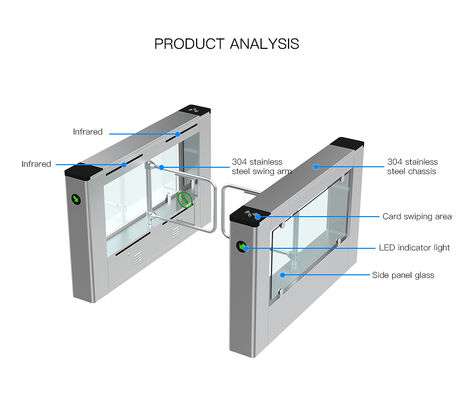

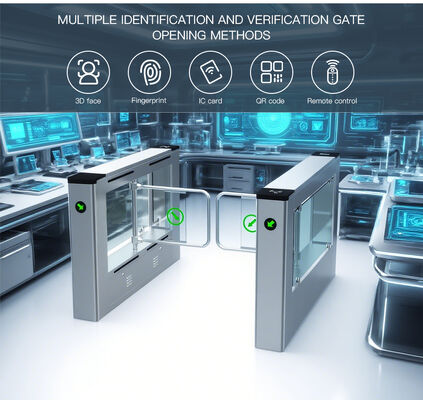

The CW421 is a high-performance anti-pinch swing turnstile gate featuring STC CPU chip technology and brushless motor operation. This versatile system supports multiple access methods including IC/ID card readers, facial recognition, fingerprint scanning, QR codes, and passport verification. Equipped with 6 pairs of infrared sensors for enhanced safety, it's ideal for office buildings, subways, schools, gyms, and other high-traffic areas.
Key Features
- Access control with audible/visual alarms for unauthorized entry attempts
- Configurable operation modes (always open/closed) with adjustable door wing speed
- Advanced anti-following tracking technology prevents unauthorized passage
- Safety rebound mechanism with motor cutoff when obstruction detected
- 120Nm impact-resistant automatic locking system
- Self-diagnostic system with alarms for intrusions, pinching, and tailgating
- Remote management capability with online/offline operation modes
- LED directional indicators display passage status
- Emergency power-off release allows free passage during outages
- Automatic reset function with configurable passage timing
Technical Specifications
| Product Model | CW421 |
|---|---|
| Motor Type | DC brushless motor |
| Infrared Sensors | 6 pairs |
| Channel Width | 600-1100mm |

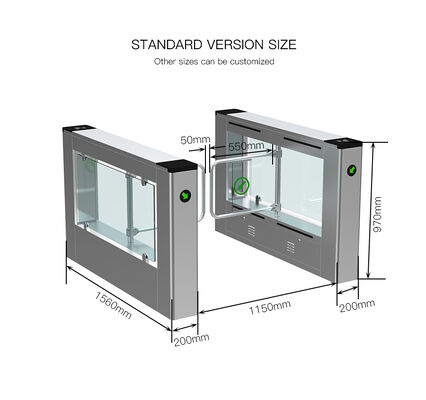

| Dimensions | 1560×220×990mm (L×W×H) |
| Weight | Approx. 68kg |
| Operating Humidity | ≤90% (non-condensing) |

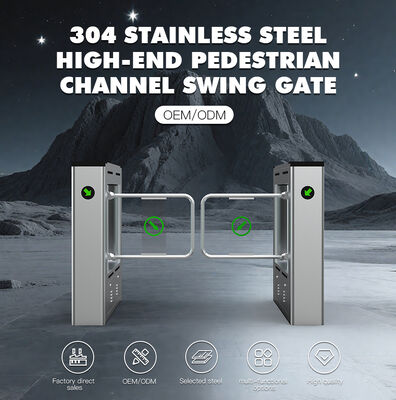

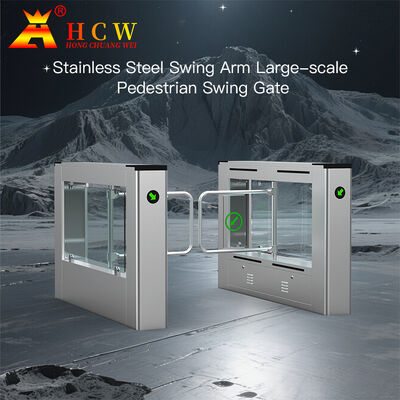

| Door Wing Material | Stainless steel pipe (standard) |
