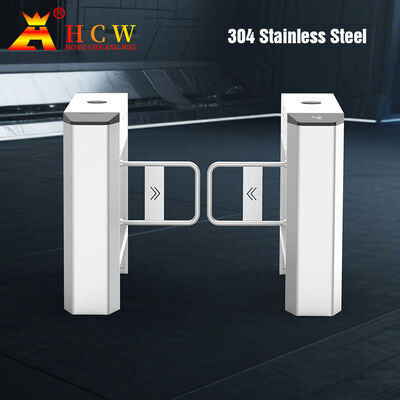

SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
| Menşe yeri | Shenzhen, Çin |
|---|---|
| Marka adı | hongchuangwei |
| Sertifika | CE |
| Model numarası | CW423 |
| Min sipariş miktarı | 1 |
| Fiyat | USD550~750 per piece |
| Ambalaj bilgileri | ahşap kasalar |
| Teslim süresi | 5-8 iş günü |
| Ödeme koşulları | T/T |
| Yetenek temini | Günde 100 adet |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Tahrik voltajı | DC motoru 24V/20W | Renk | Sarı |
|---|---|---|---|
| İletişim limanı | RS485/RS232 İletişim | Boyut | 1400*300*980mm |
| üretim süreci | CNC lazer kesimi | Güç Girişi | AC100-240V,50/60Hz |
| Elektromanyetik | Görev Döngüsü %100 | Geçiş yönü | Tek yön / iki yönlü |
| Vurgulamak | 20W Motor Power Swing Barrier Turnstile,4 Pairs Infrared Detection Swing Gate Turnstile,2 Million Working Life Access Control Turnstile |
||
Ürün Açıklaması

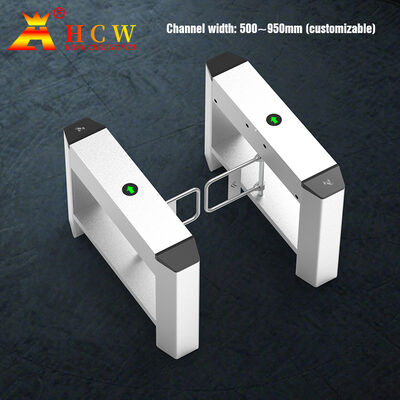

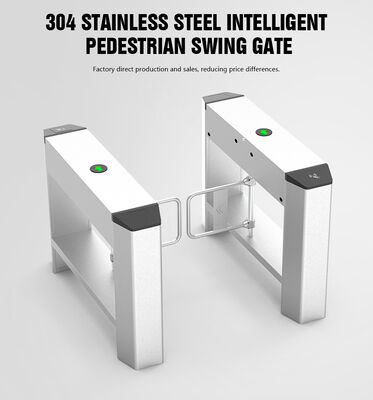

SS304 Swing Barrier Turnstile with Infrared Sensors and DC Brushed Motor
Premium Entrance Control Solution

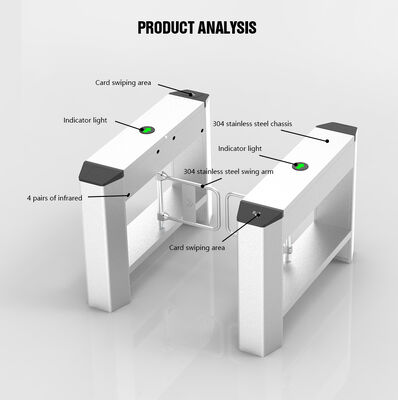

The CW423 intelligent bridge-type oblique angle swing turnstile provides secure access control for high-traffic areas. Engineered with STC CPU chip technology and a durable DC brushed motor, this system delivers exceptional reliability with 4 pairs of infrared detection sensors for precise movement tracking.
Key Features
- Advanced Security: Sound and light alarm triggers when unauthorized access is attempted
- Flexible Configuration: Adjustable opening/closing speeds and bidirectional traffic settings
- Safety Mechanisms: Anti-pinch and anti-shock functions with 120Nm impact resistance
- Clear Indicators: LED traffic direction displays for optimal crowd management
- Fail-Safe Operation: Automatic door release during power outages

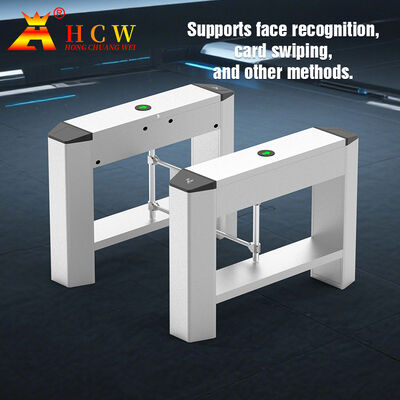

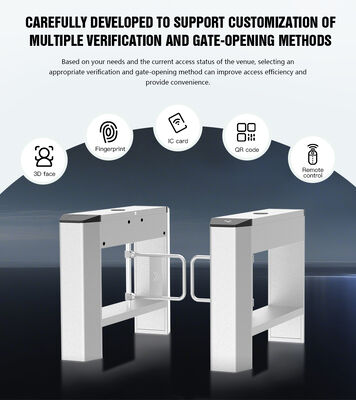

- System Integration: Compatible with IC/ID card readers, barcode scanners, and access control systems
Technical Specifications
| Product Model | CW423 |
|---|---|
| Power Supply | AC220V±10%, 50HZ±10% |
| Operating Temperature | -25℃ to 70℃ |
| Motor Power | 20W |
| Throughput Capacity | 30-40 persons/minute |
| Infrared Sensors | 4 pairs |
| Construction | 1.0mm thickness 304D stainless steel |

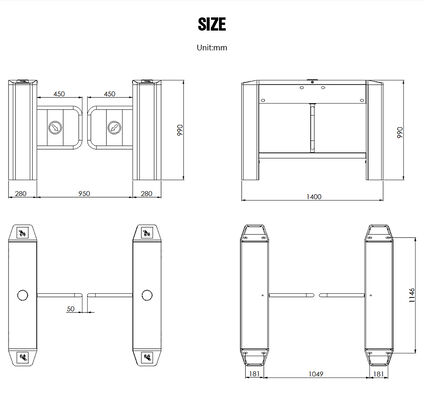

| Dimensions | 1400mm (L) × 280mm (W) × 990mm (H) |
| Weight | Approx. 55kg (single channel) |
Ideal Applications
This professional-grade turnstile is designed for demanding environments including CBD business centers, government facilities, corporate offices, high-end residential complexes, and educational institutions requiring secure, efficient access control.
