HCW Flap Barrier Turnstile with 15mm Plexiglass Door Wings 4 Pairs Infrared Beams and ISO 9001/CE Certification for Secure Access Control
| Menşe yeri | Çin |
|---|---|
| Marka adı | HCW |
| Sertifika | CE/ISO 9001 |
| Model numarası | CW592 |
| Min sipariş miktarı | 2 adet |
| Fiyat | pazarlık edilebilir |
| Ambalaj bilgileri | tahta sandık |
| Teslim süresi | 5-8 İŞ GÜNÜ |
| Ödeme koşulları | T/T |
| Yetenek temini | Günde 100 adet |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Brand name | HCW | Ürün modeli | CW592 |
|---|---|---|---|
| Şasi malzemesi | 304 paslanmaz çelik | Şasi Boyutu | 1200*300*980mm |
| Garanti | 1 Yıl | Sertifika | ISO 9001/CE |
| Besleme gerilimi | AC220V ± 10%, 50HZ ± 10% HZ | Motor | DC Fırçasız Motor |
| BAĞIL NEM | ≤90% yoğunlaşmayan | Kızılötesi kiriş | 4 çift |
| Kapı kanadı malzemesi | 15mm pleksiglas | Koşu Hızı | 30 ~ 40 kişi/dakika |
| Vurgulamak | 15mm Plexiglass Flap Barrier Turnstile,4 Pairs Infrared Beams Entrance Gate,ISO 9001/CE Certified Pedestrian Access Control Turnstile |
||
Ürün Açıklaması

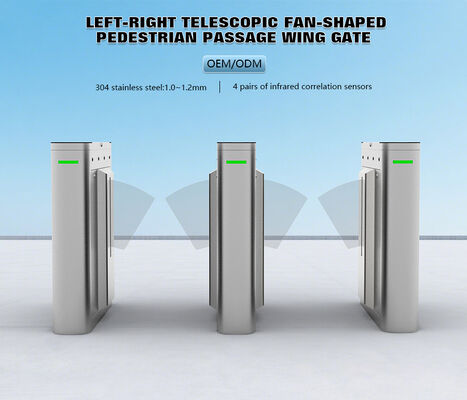

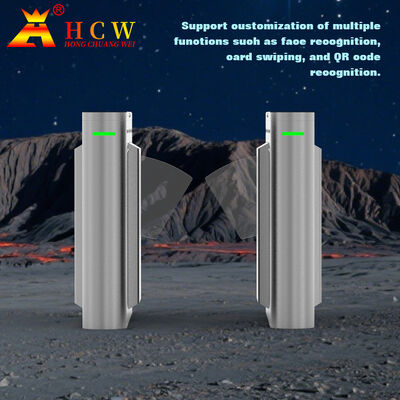

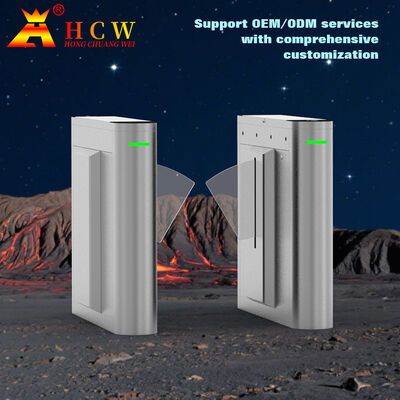

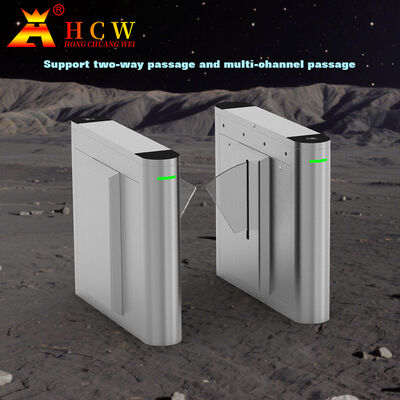

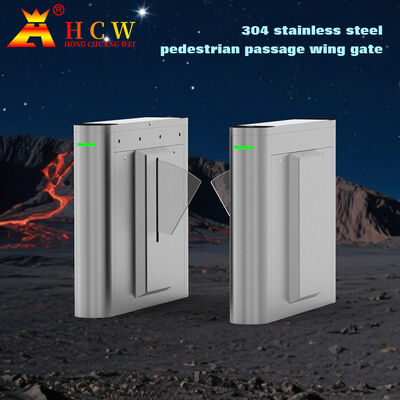

HCW Pedestrian Access Control Flap Barrier Turnstile
Stainless Steel Entrance Gate for Office and Public Facilities
The HCW CW592 represents a cutting-edge waterproof turnstile gate solution designed for intelligent access control applications. Built with a robust 304 stainless steel chassis (1200*300*980mm) and durable 15mm plexiglass door wings, this turnstile combines strength with modern aesthetics.
Key Features
- Turnstile gate intelligent management system with RS485 and RS232 interfaces
- Energy-efficient DC brushless motor (AC220V±10%, 50HZ±10%)
- High throughput of 30-40 people/minute
- 4 pairs of infrared beams for precise detection and anti-tailgating
- Compatible with biometric face recognition upgrades
- ISO 9001/CE certified with 1-year warranty
Technical Specifications
| Brand name | HCW |
|---|---|
| Product model | CW592 |
| Chassis material | 304 stainless steel |

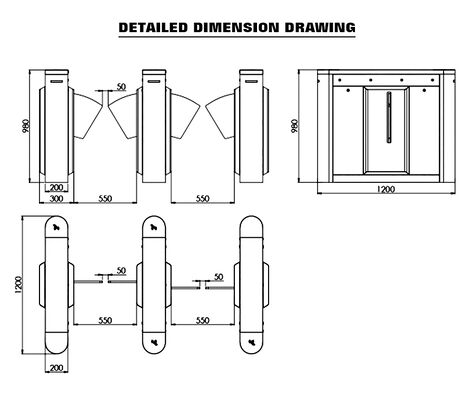

| Chassis size | 1200*300*980mm |
| Warranty | 1 Year |
| Supply voltage | AC220V±10%,50HZ±10% HZ |
| Motor | DC brushless motor |
| Relative humidity | ≤90% non-condensing |
| Infrared beam | 4 pairs |
| Door wing material | 15mm plexiglass |
| Running speed | 30~40 people/minute |
Product Advantages
- All-Weather Security Solution – Waterproof design with IP42 rating ensures reliable operation in various conditions.

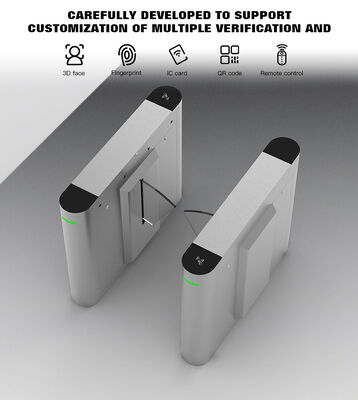

- Multi-Technology Access Integration – Supports barcode, swipe access, and face recognition options.
- High-Efficiency Traffic Flow – Maintains smooth pedestrian movement (30-40 people/minute).
- Premium Motor Performance – Brushless motor delivers silent, maintenance-free operation.

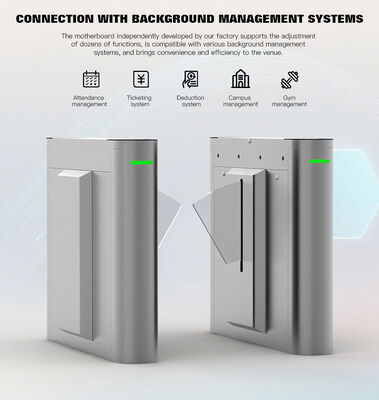

- Smart Connectivity & Customization – Features RS485/RS232 interfaces and customizable OEM options.
Applications
Corporate Campuses & Smart Offices
The 40 persons/minute office security turnstile excels in modern workplaces with its swipe access and face recognition capabilities. Its sleek design blends with professional environments while providing robust security.
Transportation Hubs & Public Venues
Ideal for airports and metro stations, this barcode-supported turnstile efficiently handles high-volume traffic. The waterproof design ensures reliable operation in various weather conditions.
High-Security Facilities
Perfect for data centers and government buildings with IP42 protection and RS485/RS232 connectivity. Offers silent, maintenance-free operation for 24/7 security needs.
